Many people wonder when purchasing construction machinery: are the seats universal? Can this seat be installed in my vehicle? In reality, mechanical seats are not entirely universal. Although they may look similar, the key factor affecting installation lies in the bottom structural parameters, especially the mounting hole spacing (installation distance).
I. Why are mechanical seats not entirely universal?
The core differences between mechanical seats are not primarily in the "seat cushion" and "backrest," but in the bottom structure:
- Different mounting hole spacing
- Different slide rail structures
- Different base heights
- Different shock absorption structure layouts
The most crucial factor is: the mounting hole spacing.

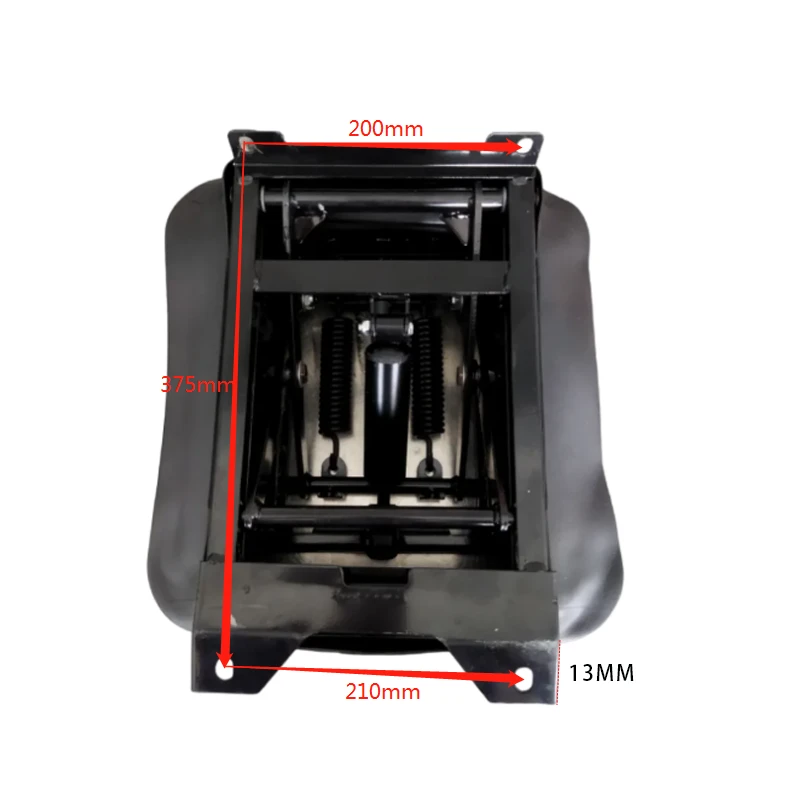

II. Common mounting hole spacings on the market
Currently, the common mounting hole spacings for construction machinery and commercial vehicle seats are:
- 230 × 280 mm (common for small equipment)
- 260 × 330 mm (mainstream industry standard)
- 280 × 330 mm / 300 × 300 mm (mid-to-high-end seats)
- Non-standard customized mounting hole spacing (export or special equipment)
III. What else should be considered when selecting a model?
- Is the seat height suitable for the cab? (Small vehicles have smaller cabs and cannot install very tall seats, so it's necessary to measure the cab space and seat dimensions beforehand for comparison.)
- Is the slide rail adjustable (forward and backward travel)?
- Load capacity (commonly 120–200kg)
- Shock absorption type (mechanical/air suspension, is there an air source in the vehicle?)
IV. YSR supports customized mounting hole spacing
YSR construction machinery seats support:
✔ Direct matching of standard hole spacing
✔ Custom production of non-standard hole spacing
✔ Rapid mold opening after drawing confirmation
✔ Improved equipment adaptation efficiency
