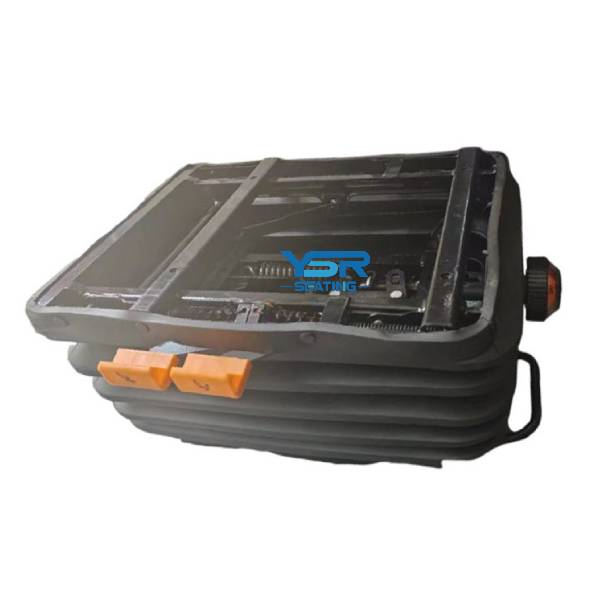

Product Overview: The Universal Mechanical Suspension Base
The Mechanical Suspension Seat Base is a high-performance upgrade component engineered to transform standard operator seats into fully functional shock-absorbing systems. It integrates comprehensive weight adjustment, vertical tilt angle control, and seamless compatibility with both double-lock and single-lock slide rail mechanisms. As a direct replacement or enhancement for existing mechanical shock absorber driver seats, this Suspension Seat Base delivers exceptional durability and ergonomic performance across a wide range of industrial and mobile applications.
Designed for versatility, this Mechanical Suspension Base features an upper section equipped with direct-connect sliding rails that allow rapid, secure attachment of most standard seat cushions. The robust bottom plate is engineered for straightforward vehicle floor installation, requiring minimal modification to existing cab layouts. Whether you are retrofitting a worn factory unit or building a custom seat solution, this base provides the structural integrity and adjustment precision demanded by professional operators.
Video demonstration: Mechanical suspension action and height adjustment in real time.
Technical Specifications & Dimensions
| Product Model | Tractor Suspension Seat Base – Universal Series |
| Gross Weight | 20 kg (packaged) |
| Net Weight | 17 kg |
| Package Dimensions | 520 × 450 × 300 mm |
| Top Mounting Pattern | 310 × 280 mm (standard seat slide rail interface) |
| Base Mounting Pattern | 280 × 216 mm (vehicle floor interface) |
Precision-engineered components: damper, scissor mechanism, and slide rail interfaces.
Features & Performance Benefits
Advanced Adjustment Capabilities
• Double‑locking slider: Provides secure, vibration‑proof positioning of the seat cushion – no unwanted creeping during operation.
• Flexible control placement: Available with left‑hand or right‑hand vertical adjustment levers to suit operator preference and cab layout.
• Customizable rail configuration: Choose single‑lock or double‑lock sliders; enhanced‑width sliders available for extra‑wide seat applications.
• Weight adjustment range: Accommodates operators from 50 kg to 130 kg via simple mechanical tension dial.
Superior Performance Advantages
• Premium damper components: High‑coefficient friction dampers and calibrated spring packs deliver consistent shock absorption across the entire suspension stroke.
• Rail system flexibility: Compatible with most standard seat slide rails for smooth fore/aft travel; optional 360° rotating base available for specialty vehicles.
• Direct OEM replacement: Identical mounting footprint to major suspension base brands – no drilling or adapters required for most applications.
• No additional angle adjuster needed: Integrated vertical tilt control eliminates the need for separate hardware.
• Proven durability: Tested to over 500,000 cycles under full load, confirming its reputation as a reliable Tractor Suspension Seat Base for the most punishing environments.
Applications & Installation Specifications
Extensive Vehicle Compatibility
This Mechanical Seat Suspension system is engineered to fit a broad spectrum of mobile equipment, including:
- Construction & Earthmoving: Excavators, wheel loaders, bulldozers, backhoes.
- Agricultural Machinery: Tractors, harvesters, sprayers – a preferred Tractor Suspension Seat Base upgrade.
- Material Handling: Forklifts, reach stackers, telehandlers.
- Commercial Vehicles: Light and medium trucks, buses, port terminal tractors.
- Mining & Off‑Highway: Underground loaders, haul trucks, drilling rigs.
Equally suitable for driver and passenger seating positions where shock mitigation is required.
Precise Installation Dimensions
• Top interface (to seat cushion): 310 × 280 mm – standard sliding rail hole pattern.
• Base interface (to vehicle cab): 280 × 216 mm – four‑bolt pattern, compatible with most OEM floor profiles.
• Custom mounting service: YSR can produce non‑standard hole patterns and base geometries to suit unique vehicle models – simply provide a template or drawing.
• Installation time: Typical retrofit completed in under 30 minutes using basic hand tools.
Technical Insight: Mechanical vs. Air Suspension
Choosing the right suspension technology depends on application demands and operator preference. Mechanical Suspension Seat Base systems offer distinct advantages:
- Superior stability: Minimal lateral sway and rebound oscillation – preferred for precision tasks (e.g., grading, crane operation).
- Longer service life: Fewer wear components; no air bags, compressors, or leak‑prone seals.
- Cost‑effectiveness: Lower initial investment and reduced lifetime maintenance compared to air systems.
- Temperature immunity: Consistent performance from –30°C to +50°C – ideal for unheated cabs and extreme climates.
While air suspension provides finer on‑the‑fly adjustability, the Tractor Suspension Seat Base remains the workhorse choice for operations prioritizing ruggedness, simplicity, and total cost of ownership.
Quality Assurance & Manufacturing Heritage
YSR Seating has supplied Suspension Seat Base components to OEMs and aftermarket distributors for over 15 years. Each unit undergoes stringent quality control:
- 100% functional testing of damper force and spring rate.
- Salt‑spray corrosion resistance (≥96 hours) on all ferrous components.
- Welds inspected to AWS D1.1 standards.
- Our ISO 9001:2015 certified facility ensures consistent production quality from the first piece to the ten‑thousandth.
Production Capacity, Packaging & Global Logistics
| Category | Specification |
| Monthly Production Capacity | 800 – 1,000 pieces (dedicated production line; rapid scale‑up available for fleet programs) |
| Individual Packaging | Each Mechanical Seat Suspension base is packed in a heavy‑duty export carton (52×45×30 cm, 20 kg gross) with custom‑cut EPS foam inserts to prevent transit damage. |
| Bulk / Palletized Shipments | Units consolidated on fumigation‑free wooden pallets: 6, 12, or 24 pieces per pallet – fully stretch‑wrapped and labelled for air/sea freight. |
| Primary Export Ports | Shenzhen, Guangzhou, Shanghai, Qingdao (FOB, CIF, DAP, DDP terms supported) |
| Lead Time (Standard Models, 1‑10 pcs) | 1 – 3 business days from order confirmation |
| Lead Time (Bulk / Custom Orders, >10 pcs) | Approximately 15 business days (dependent on specification and volume) |
| Global Freight Partners | Preferred rates with DHL, FedEx, UPS, Kuehne+Nagel, and major container carriers ensure reliable, traceable delivery worldwide. |
Why Choose YSR Seating?
YSR Seating is not merely a component supplier – we are a engineering partner. Our Suspension Seat Base products are designed with full interchangeability in mind, ensuring that a failed base on a German excavator or a Japanese forklift can be replaced by our unit without modification. Thousands of satisfied customers in over 30 countries rely on YSR for:
- True direct replacement: No adapter plates, no drilling – just bolt on and operate.
- Technical support: Installation drawings, dimensional verification, and application engineering advice available free of charge.
- After‑sales peace of mind: 12‑month warranty against manufacturing defects; spare parts stocked for rapid dispatch.
Contact YSR Seating – Request a Quote or Sample
Ready to upgrade your operator's comfort and productivity? The YSR Mechanical Suspension Seat Base is available for immediate shipment. Contact our industrial sales team for a detailed quotation, free CAD drawing, or to discuss custom mounting requirements.
● Office Tel: +86-029-81136503
● Mobile / WeChat / WhatsApp: +86-13991337062
● Email: sales@ysrseats.com
🚜 Fleet discount available | OEM customisation welcome | Sample orders accepted
Tell us your vehicle model and current seat base part number – we will verify compatibility and respond within 4 business hours. YSR: The intelligent choice for Tractor Suspension Seat Base replacements and industrial seating upgrades worldwide.
